PlanetsX EN
Main Features
Navi
- Our originally developed high-end solver gPLANETSh, which does dedicated injection molding analysis, now works as a plug-in to Ansys Workbench.
- PlanetsX can be used essentially as functions of Workbench in all steps for example, Mesh Generation and Pre/Post Processing.
- Customized development provides analysis setting for molding conditions as a plug-in.
- Polymer Flow-Injection Analysis (hereafter called Flow Analysis) includes holding-pressure and cooling phases.
- Provides structural deformation and Warp Analysis by coordinating it with Ansys Workbench Static Structural.
Pre/Post-Processing

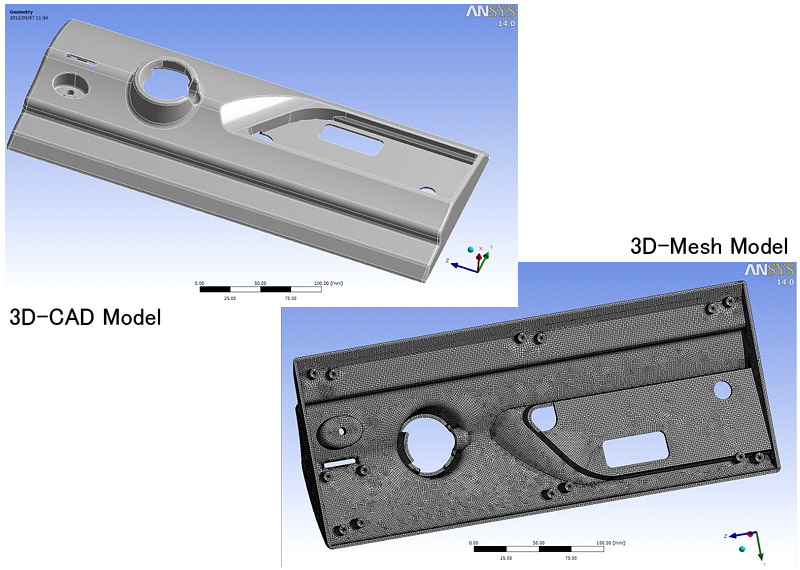

Pre-Processing
(Import Model/Mesh Generation)
Provides extensive functionality of Workbench,
such as mesh generation and CAD interface.
(Import Model/Mesh Generation)
Provides extensive functionality of Workbench,
such as mesh generation and CAD interface.

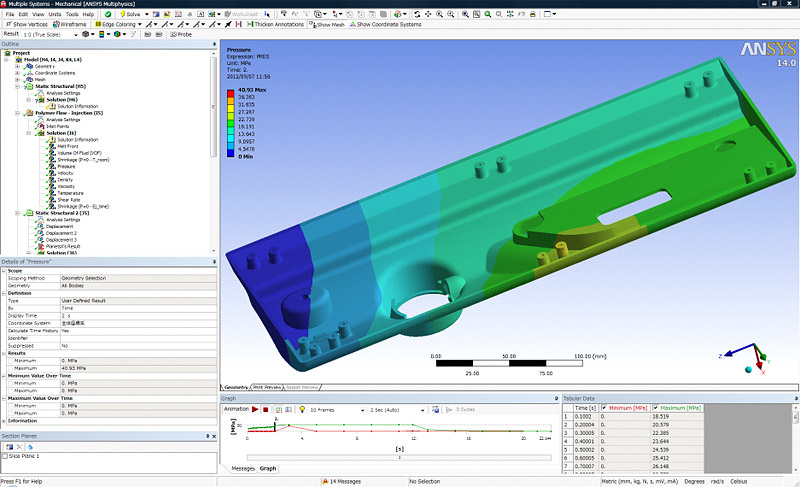

Post-Processing
Provides extensive functionality of post-processing
on Ansys Workbench Mechanical.
Provides extensive functionality of post-processing
on Ansys Workbench Mechanical.
Setup for Analysis

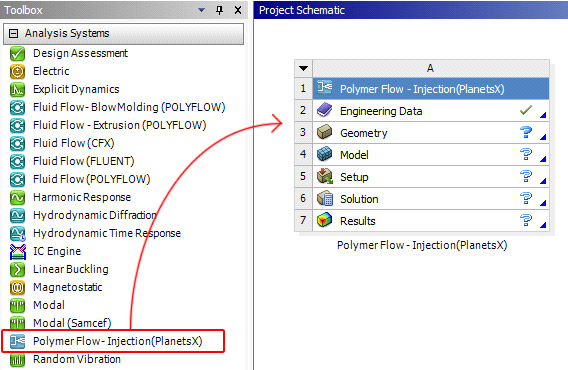

Project setup
Create project Flow Analysis easily with drag and drop.
Create project Flow Analysis easily with drag and drop.

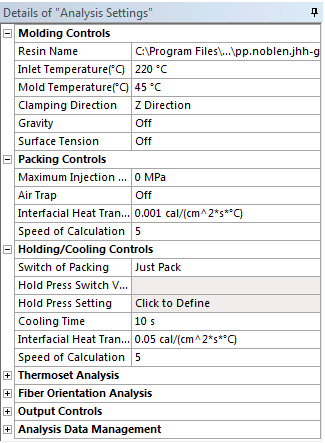

Injection molding conditions setup
Easy settings specific for Flow Analysis.
Easy settings specific for Flow Analysis.
Analysis coordination with Static Structural setup
Analyses coordination settings on the project schematic.
Analyses coordination settings on the project schematic.
Various Analysis Results
- Flow pattern
- Volume of fluid
- Pressure distribution
- Temperature distribution
- Velocity distribution
- Volume shrinkage distribution
- Warpage deformation
- Load deformation

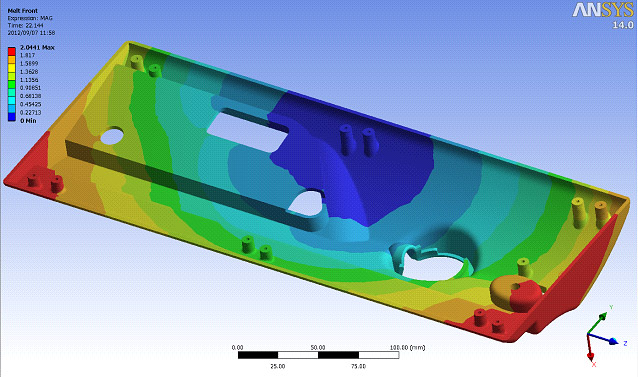

Flow pattern

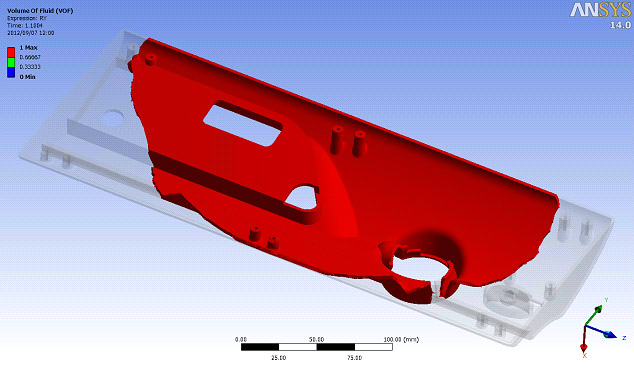

Volume of fluid

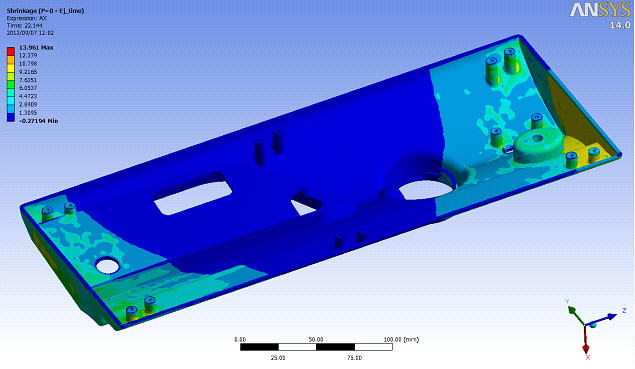

Volume shrinkage distribution

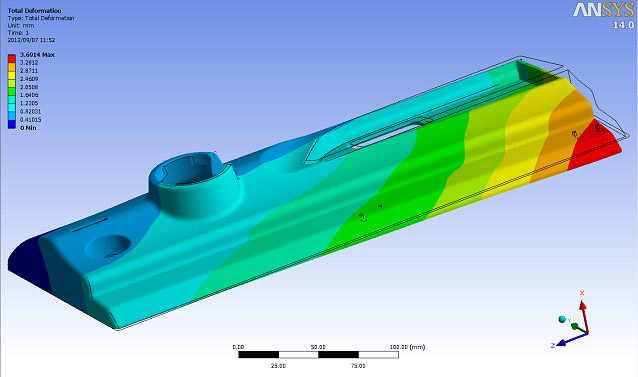

Warpage deformation

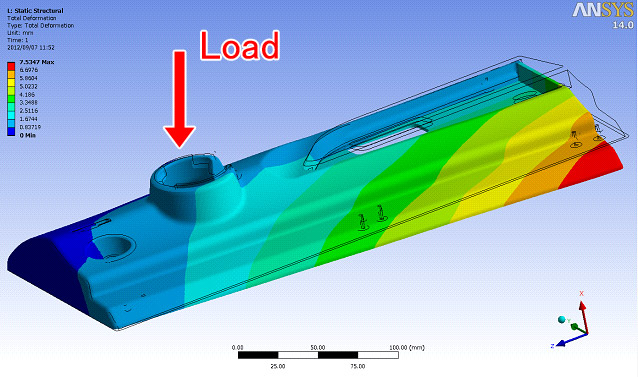

Deformation under load post Warp Analysis
