Multi-scale analysis of the honeycomb structure cantilever
Performing multi-scale analysis on the honeycomb material cantilever, and verifying the validity of the multi-scale analysis as in the Multi-scale analysis on the porous cantilever.

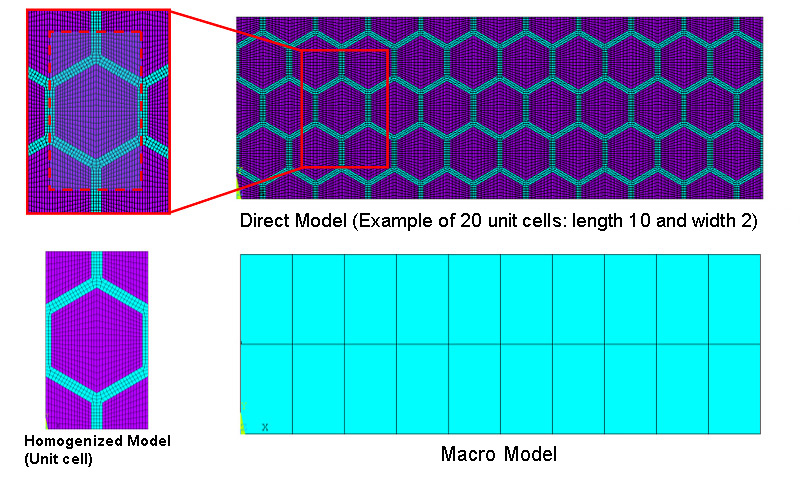

Analysis Model

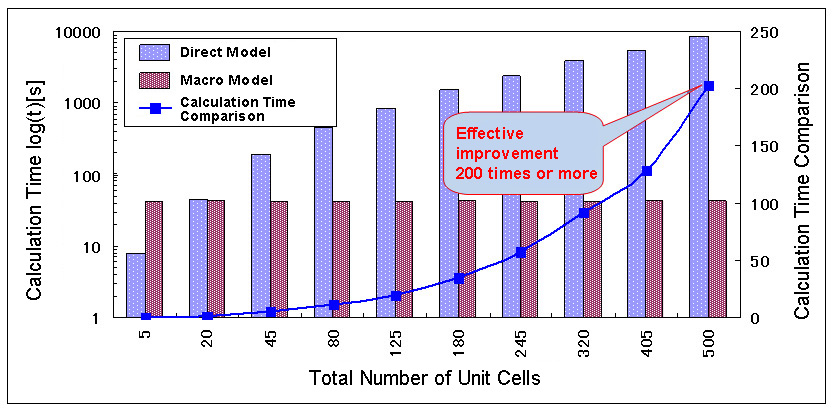

Comparison of Calculation Time
Analysis Results

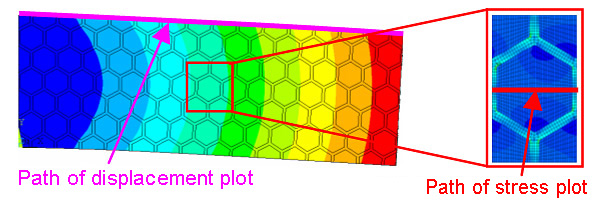

A graph of displacement and stress of the macro-model and direct model is shown below. A tendency for improved analysis accuracy when the number of holes is increased can be observed as with the Multi-scale analysis on the porous cantilever.

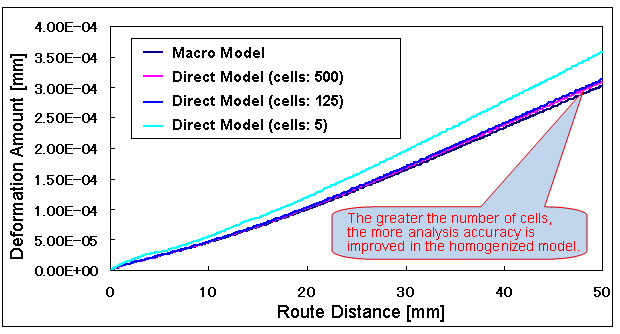

Comparison of Deformation Amount
Comparison of Equivalent Stress
