Micro-stress distribution of the internal metal structure (numerical material test)

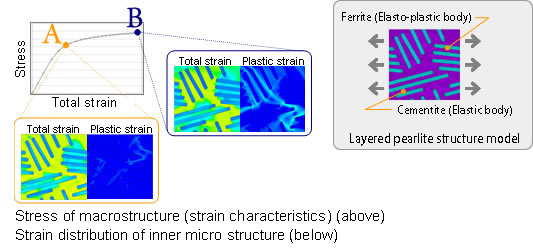

This example shows a numerical material test for the structure of structural steel. Steel has a layered pearlite structure that is a lamellar structure of ferrite and cementite. Modeling this in practice, and performing a uniaxial tensile test in the X-axis direction.
The results obtained in this test are macroscopic apparent stress (strain characteristics), inner micro structure stress, and strain distribution.
